Quick Look

• Output: 4000W, 6000W With X-Boost 8000W (Surge)
• Capacity: 4096Wh 51.2V 80Ah
• AC Outlets: Total: 7 4 x NEMA 5-20R 230V/20A 1 x TT-30 230V/30A 1 x L14-30, 120V/240V/16.7A 1 x NEMA 6-20R, 240V/16.7A
• Solar Charging Input: 2600W total 2 ports High-PV Input: 30V to 150V 15A 1600W Max Low PV Input: 11V to 60V 20A 1000W Max
• Battery Chemistry: LFP (LiFePO4)
• Dimension (mm): 410.4MM X 341MM X 693MM

Output

• AC Output: 120/240V 16.7A 60Hz 4000W total
• 120/240V AC Output
• 1 X NEMA L14-30R 16.7A
• 120V AC Output
• 4 X NEMA 5-20R 20A 1 X NEMA TT-30R 30A
• USB-A: 2 X 5V 2.4A / 9V 2A/12V 1.5A, 18W Max per port, 36W total
• 240V AC Output
• 1 X NEMA 6-20R 16.7A
• USB-C: 2 X 5V / 9V / 12V / 15V / 20V 5A 100W Max per port, 200W total
• DC5521 Output: 1 X 5A Max
• Anderson Port: 1 X 30A Max
• DC Output(12V/24V): 12.6V 30A, 378W total

Input

• Solar Charging Input
• 2600W total 2 ports High-PV Input: 30V to 150V 15A, 1600W Max Low PV Input: 11V to 60V 20A 1000W Max
• AC+PV Charge Only: 100V to 240V 15A 50/60Hz Bypass Mode: 100V - 120V 15A (3 hours Max) 12A (continue) 50/60Hz

Battery

• Rated Capacity: 4096Wh

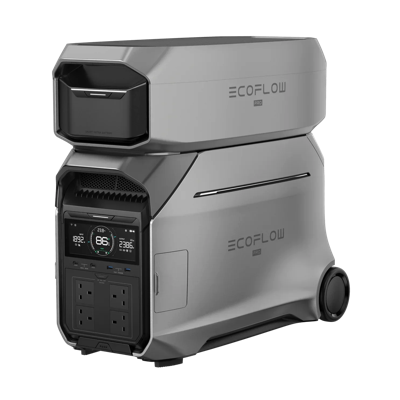

• Expandable Capacity (Single Unit): 12kWh (2 X DP3 Extra Battery)
• AC Continuous Output: 4000W, 6000W with X-boost

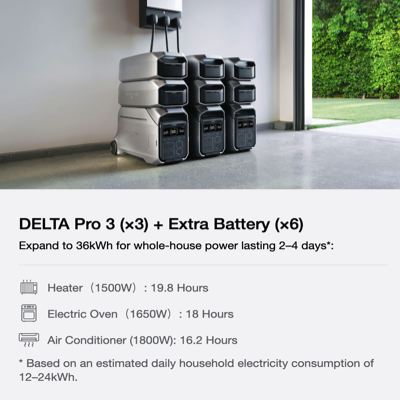

• Expandable Capacity (System): 36kWh (6 × DP3 Extra Battery); Up to 48kWh
• AC Surge Output: 8000W
• Scalability (System): 12kW
• Battery Chemistry: LFP
• Cycle life: 4000 cycles to 80% capacity
• UPS: 10 ms

Environmental Operating Temperature

• Discharge Temperature (F): 14 DEG F to 113 DEG F
• Discharge Temperature (C): -10 DEG C to 45 DEG C
• Storage Temperature (F): 14 DEG F to 113 DEG F
• Storage Temperature (C): -10 DEG C to 45 DEG C
• Charge Temperature (F): 32 DEG F to  113 DEG F
• Charge Temperature (C): 0 DEG C to 45 DEG C

What's In the Box

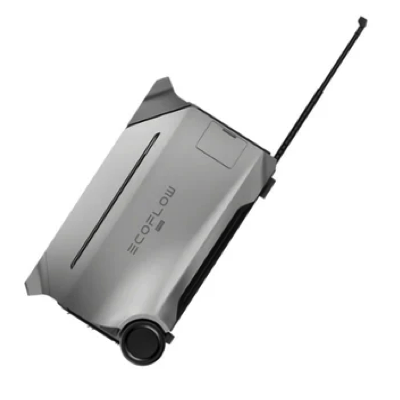

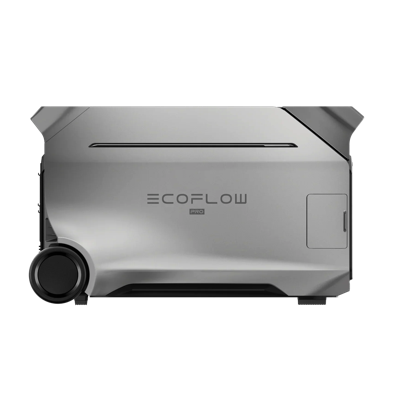

1. EcoFlow DELTA Pro 3 Portable Power Station
2. Quick Start Guide
3. Safety Guide
4. Warranty Card
5. EcoFlow AC Charging Cable 6. Grip Protector
