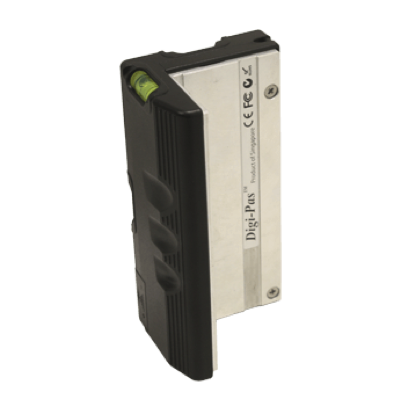

The Digi-Pas DWL-1000XY 2-axis electronic angle gauge is a leveling machine between the vertical and horizontal axes with a resolution of 0.05°. This is an idea that has been tested by experts and applied in practice to measure vertical and horizontal dimensions.
The product is used in the construction of telephone telecommunication towers, or to support the construction of fences, pipes, gutters, window and door frames...
Advantages of Digi-Pas DWL-1000XY Electronic 2-Axis Angle Gauge
Users can quickly and easily install window and door frames by focusing directly on the large LCD display. Angle measurement results are readable in low light working conditions.
Battery saving mode: The Digi-Pas DWL-1000XY 2-axis electronic angle gauge will automatically turn off when not in use for 5 minutes.

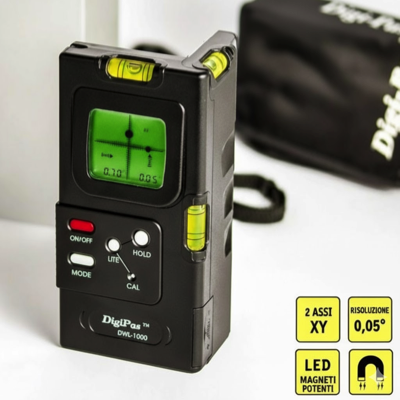

Dual angle display: digital display for both level numbers and line graphs. Very useful in assisting and guiding the user to efficiently set up or check objects at the workplace.
User-adjustable: The self-calibration feature allows users to adjust the measurement angle to Zero at any angle they want. Additionally, with the reverse display reading feature, users can read the specifications in a vertical format.
Digi-Pas DWL-1000XY 2-axis electronic angle gauge is designed with strong magnets, allowing users to use it on metal surfaces.
Color: GREY
Weight(KG): 1.000
Measuring range from 0° ~ 90°; 4 x 90° (360°)
Resolution of 0.05° (1.0mm/M)
Measuring range dual-axis 0° ~ 45°
Accuracy of ± 0.05° at around 0° & 90° ; ± 0.2° at 1°~89°
Digital display of angle in °(Degree), %(slope) mm/M, In/Ft
